| 產品名稱 | FNHR20C 法蘭型滾柱滑塊 |
| 類目 | 直線導軌 |
| 品牌 | JYU捷優 |
| 型號 | FNHR20C |
| 型號 Model |

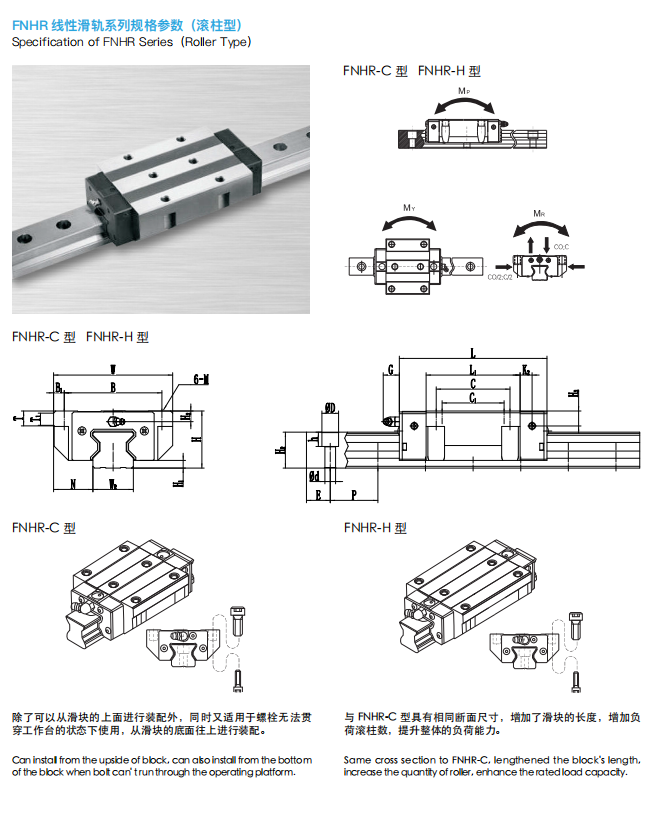

組件尺寸 Component Demension |
滑塊尺寸(MM) Block Dimension |
油嘴規格 Grease Nipple Specification |
||||||||||||||||
| H | H1 | N | W | B | B1 | C | C1 | L1 | L | K1 | K2 | G | M | T | T1 | H2 | H3 | ||
| FNHR20C | 30 | 5 | 21.5 | 63 | 53 | 5 | 40 | 35 | 57.5 | 86 | 13.8 | 6 | 5.3 | M6 | 8 | 10 | 4.3 | 4.3 | G-M6 |
| FNHR20H | 77.5 | 106 | 12.8 | ||||||||||||||||
| FNHR25C | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 40 | 64.5 | 97.9 | 15.75 | 7.25 | 12 | M8 | 9.5 | 10 | 6.2 | 6 | G-M6 |
| FNHR25H | 81 | 114.4 | 24 | ||||||||||||||||
| FNHR30C | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 44 | 71 | 109.8 | 17.5 | 8 | 12 | M10 | 9.5 | 10 | 6.5 | 7.3 | G-M6 |
| FNHR30H | 93 | 131.8 | 28.5 | ||||||||||||||||
| FNHR35C | 48 | 6.5 | 33 | 100 | 82 | 9 | 62 | 52 | 79 | 124 | 16.5 | 10 | 12 | M10 | 12 | 13 | 9 | 12.6 | G-M6 |
| FNHR35H | 106.5 | 151.5 | 30.25 | ||||||||||||||||
| FNHR45C | 60 | 8 | 37.5 | 120 | 100 | 10 | 80 | 60 | 106 | 153.2 | 21 | 10 | 12.9 | M12 | 14 | 15 | 10 | 14 | G-PT1/8 |
| FNHR45H | 139.8 | 187 | 37.9 | ||||||||||||||||
| FNHR55C | 70 | 10 | 43.5 | 140 | 116 | 12 | 95 | 70 | 125.5 | 183.7 | 27.75 | 12.5 | 12.9 | M14 | 16 | 17 | 12 | 17.5 | G-PT1/8 |
| FNHR55H | 173.8 | 232 | 51.9 | ||||||||||||||||
| FNHR65C | 90 | 12 | 53.5 | 170 | 142 | 14 | 110 | 82 | 160 | 232 | 40.8 | 15.8 | 12.9 | M16 | 22 | 23 | 15 | 15 | G-PT1/8 |
| FNHR65H | 223 | 295 | 72.3 | ||||||||||||||||
| 型號 Model | 導軌尺寸 Rail Dimensions (mm) |
導軌固定 螺栓尺寸 Tightening Bolt of Rail | 基本額定負荷 Basic Load Rating | 容許靜力矩 Allowable Static Torque |
重量 Weight |
||||||||||||||
| WR | Hr | D | h | d | P | E | (mm) | C(KN) | Co (KN) |
MR KN-m | MP KN-m |
MY KN-m |
滑塊 Block(kg) | 導軌(kg/m) Rail(kg/m) |
|||||
| FNHR20C | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5X20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.44 | 2.76 | ||||
| FNHR20H | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.62 | |||||||||||||
| FNHR25C | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6X20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.67 | 3.08 | ||||
| FNHR25H | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.86 | |||||||||||||
| FNHR30C | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8X25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 1.06 | 4.41 | ||||
| FNHR30H | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.42 | |||||||||||||
| FNHR35C | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8X25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.61 | 6.06 | ||||
| FNHR35H | 73.1 | 142 | 2.93 | 2.60 | 2.60 | 2.21 | |||||||||||||
| FNHR45C | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12X35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 3.22 | 9.97 | ||||
| FNHR45H | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 4.41 | |||||||||||||
| FNHR55C | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14X45 | 130.5 | 252 | 8.01 | 5.40 | 5.40 | 5.18 | 13.98 | ||||
| FNHR55H | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 7.34 | |||||||||||||
| FNHR65C | 63 | 53 | 26 | 22 | 18 | 75 | 35 | M16X50 | 213 | 411.6 | 16.20 | 11.59 | 11.59 | 11.04 | 20.22 | ||||
| FNHR65H | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 15.75 | |||||||||||||
